Skid Steer Angle Broom Attachment 60"

Skid Steer Angle Broom Attachment fits Universal Skid Steer Quick Attach with 60'' width, sold it in North America, Europe, it good way to sweep away snow and other debris.
  • 280kg 616lbs

  • 1520mm 60Inches


Skid Steer Angle Broom Description

RAY Skid Steer angle broom attachment should move dirt, snow, grime and whatever else with relative ease, and this angle broom is fully powered to do just that.

Skid Steer Angle Broom Specification

Model Weight Operating Width Brush Diameter  Rotation Angle Operation Pressure Oil flow L*W*H
Unit Kg Lbs mm Inches mm Inches Drgree Mpa l/min Gpm m
60'' 550 1210 1520 60 800 32 ±30 16 50-90 13-24 1.6*2*0.8
72'' 600 1320 1820 72 800 32 ±30 16 50-90 13-24 1.6*2.3*0.8
84'' 650 1430 2130 84 800 32 ±30 16 50-90 13-24 1.6*2.6*0.8

Skid Steer Angle Broom Catalogue

2022 RAY Skid Steer Attachments Catalogue.pdf

Skid Steer Angle Broom Video

Skid Steer Angle Broom Features

• Fast wafer change time

• 30° right and left angle (manual or optional hydraulic)

• Greasable bearings for longer wear life

• Hydraulic drive motor (no chains)

Skid Steer Angle Broom-1
Skid Steer Angle Broom-2

Skid Steer Angle Broom-3
Wheel Loader Angle Broom

Skid Steer Angle Broom FAQ

1. How do you change the brush on a RAY angle broom?

Lower the broom to align with the surface.

1) Remove Hydraulic Motor Assembly. Disconnect hydraulic hoses from the hose clamp so the motor pulls out easily. ...

2) Remove Plates. The core should be free from the brush head. ...

3) Remove Old Brush Sections.

4) Install New Brush Sections.

5) Reinstall Plates.

6) Reinstall Hydraulic Motor Assembly.

2. Are angled brooms better?

Angled brooms are ideal for sweeping narrow spaces and collecting large particles of the debris before further cleaning or sanitizing. Push brooms work best over large areas, moving heavy debris across an area.

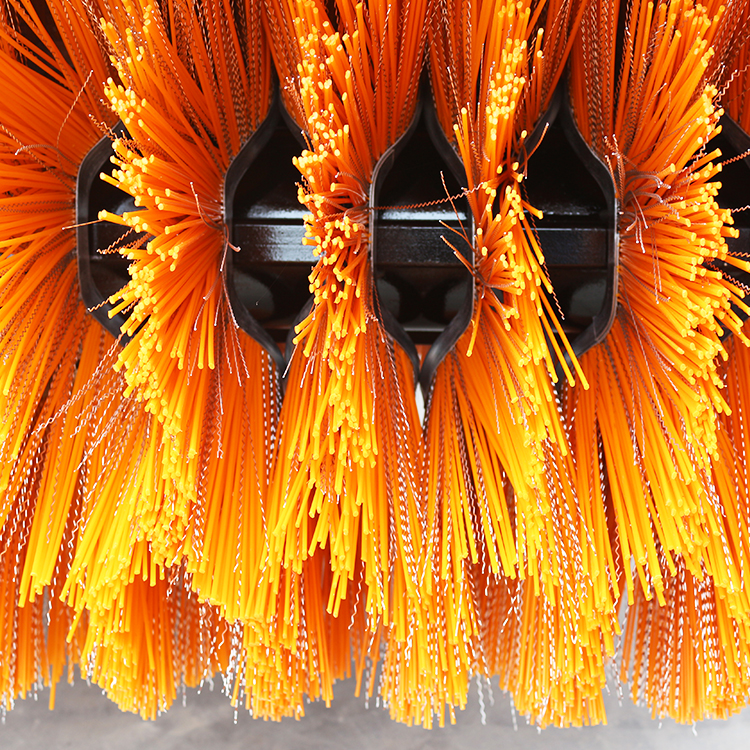

3. What is the diameter of the brush?

The brusher diameter is 32inch/800mm.

4. What size do you have?

We have three sizes:
