Leading 4 In 1 Bucket Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM Experience for World Famous Excavator
3. 12 Months Warranty

4 In 1 Bucket

Can't Find Ideal 4 In 1 Bucket For Your Industries?

We provide custom solutions to all our customers and offer tree spade that you can take advantage of.

About RAY : Your Expert 4 In 1 Bucket Supplier

RAY SKID STEER is a leading manufacturer of 4 In 1 Bucket in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Contact Our Support Team

4 In 1 Bucket Technical Parameters

4 In 1 Bucket Specifictaion

Model	Unit	60''	72''	84''
Weight	Kg	385	460	542
Weight	Lbs	847	1012	1192
Total Width	mm	1530	1830	2140
Total Width	Inches	60	72	84
Open Distance	mm	718	718	900
Open Distance	Inches	28	28	36
Clamping Force	N	8230	8230	8230
Capacity	㎥	0.4	0.44	0.52
Pressure	Mpa	20	20	20
LWH	m	0.91.60.8	0.91.90.8	12.20.9

4 In 1 Bucket Advantages

* Protected hoses.

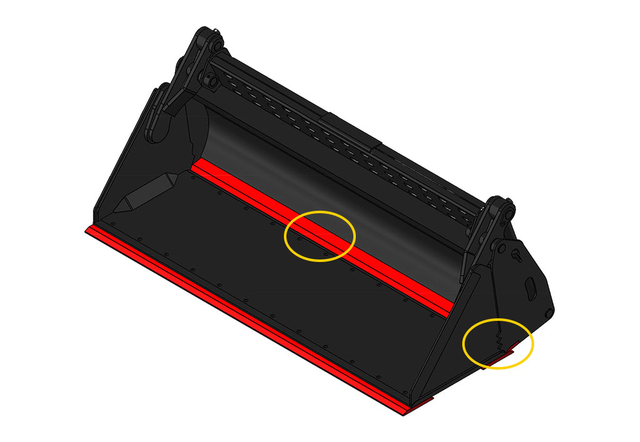

* Standard bolt-on-edge on dozer portion.

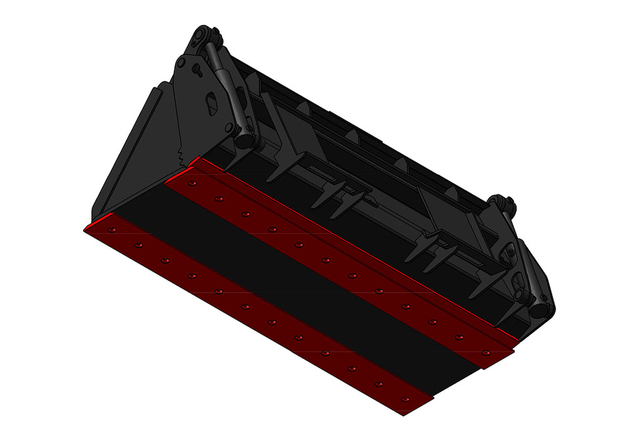

* Front bolt-on-edge available.
* Weld on shanks and teeth available.

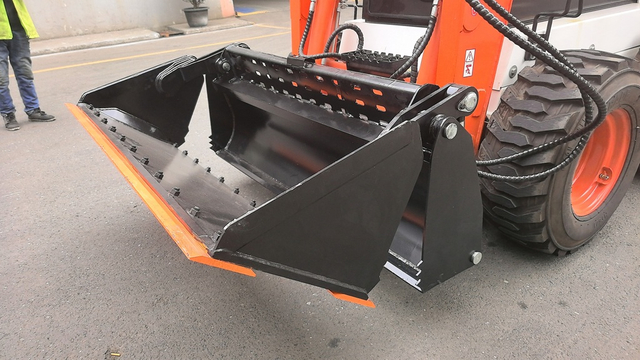

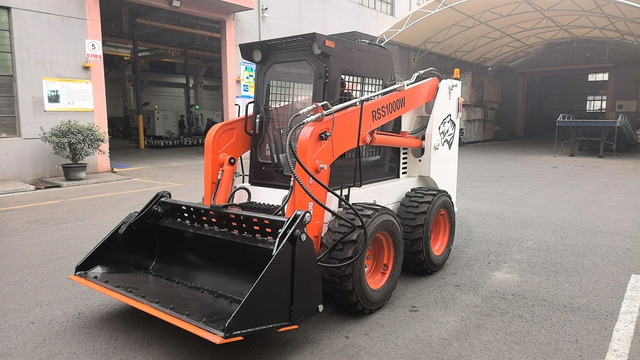

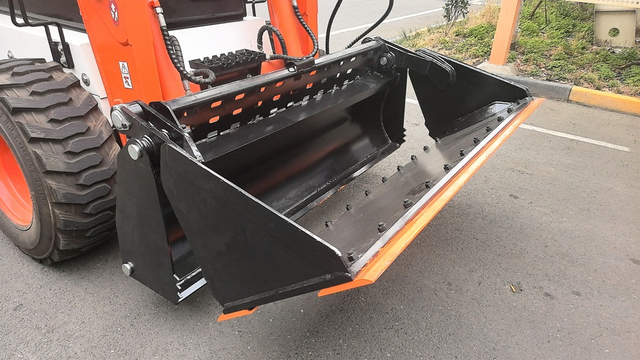

RAY 4-in-1 bucket has set the standard with this extremely durable attachment. It will make a skid steer or compact track loader into a very versatile machine. Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket or back drag with the open bucket like a box blade. Uses 2 powerful cylinders and can be greased on all pivot points. Pilot operated check valve to control drifting is available. Other options available are teeth or a bolt-on edge.

Contact RAY Expert

4 In 1 Bucket Packing & Shipping

4 In 1 Bucket Videos

Send Us Your Inquiry Today

4 In 1 Bucket Catalogue

2022-12-17 53

RAY EXCAVATOR AND SKID STEER ATTACHMENTS CATALOG.pdf

2022-12-17 52

RAY SKID STEER CATALOG.pdf

2022-12-20 20

RAY SKID STEER ATTACHMENTS CATALOG.pdf

Related Skid Steer Attachments

Skid Steer Standard Bucket

Skid Steer Concrete Mixer Bucket

Concrete Mixing Bucket Skid Steer 50"

Skid Steer Backhoe Attachments

Skid Steer Backhoe Attachment BK001

Related Skid Steer Loaders

Skid Steer Loaders

Compact Track Loader

Diesel Mini Skid Steer

Cooperation Process

Step.1

Send your inquiry

Step.2

Quote price

Step.3

Negotiate price and lead time

Step.4

Sign the contract

Step.5

Payment and production

Step.6

Inspection

Step.7

Shipment

4 In 1 Bucket FAQ

Does teeth available for the 4 in 1 bucket?

RAY 4 in 1 bucket can be equipped with tooth, fast and easy to change.
How about 4 in 1 bucket capacity?

The storge capacity of RAY 4 in 1 bucket is 0.4m³, 0.44m³, 0.52m³.
What's the features about 4 in 1 bucket?

1. Wide opening jaws for easy dumping;
2. Extra heavy duty flat floor for additional strength;
3. Includes hoses & standard couplings;
4. All hydraulic hoses are protected on this bucket;
5. Uses 2 powerful cylinders and it comes with cylinder protection cover;
6. Standard bolt-on-edge on dozer portion;
7. Step - to easily access cab;
8. Teeth available.
What is the applicable size?

It’s with great applicability that suits all models.
What model do you have for the 4-in-1 bucket?

The common size is 60", 72", 84".
Why is it called 4 in 1 bucket?
There are 4 functions into one bucket:
1. Excavation
2. Loading/unloading
3. Leveling
4. Flattening
With this attachment, operators are able to doze, dig, load, carry and dump material. Plus, the attachment can grip debris (like a grapple) and grade and level dirt.
How do you use a 4 in 1 skid steer bucket?

When the 4-in-1 skid steer bucket is closed, it operates like a standard bucket, with the added advantage of being able to dump at maximum height. This is due to the bucket's ability to open at the bottom to spill out material (something that cannot be accomplished with a standard bucket). This “bottom dumping” capability allows the attachment to function as a high-dump bucket, as well. Operators can also spread dirt by opening the bottom of the bucket while grading/moving.

When opened, the back of the bucket can serve as a dozer. The clam-style design allows the 4-in-1 bucket to function as a grapple, picking up materials that couldn't be handled with a standard bucket. The open position can be also used to quickly clean up or "pinch" the last of any dirt piles instead of shoveling.
What is a 4 in 1 bucket?

4 functions in one bucket: Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket or back drag with the open bucket like a box blade.

Factory FAQ

Are you a factory or trading company?

We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
Where is your factory located?

Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China

It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
