66"
502kg 1106lbs
0.55m³
| Availability: | |
|---|---|
| Quantity: | |

| Model | Weight | Total Width | Open Distance | Clamping Force | Capacity | Pressure | L*W*H | |||
| Unit | Kg | Lbs | mm | Inches | mm | Inches | N | m³ | Mpa | m |
| 60" | 470 | 1036 | 1524 | 60 | 682 | 26.85 | 19000-25000 | 0.50 | 24 | 1.6*1*0.75 |
| 66" | 502 | 1106 | 1676 | 66 | 682 | 26.85 | 19000-25000 | 0.55 | 24 | 1.7*1*0.75 |
| 72" | 532 | 1172 | 1828 | 72 | 682 | 26.85 | 19000-25000 | 0.60 | 24 | 1.9*1*0.75 |
| 84" | 594 | 1309 | 2134 | 84 | 682 | 26.85 | 19000-25000 | 0.7 | 24 | 2.2*1*0.75 |

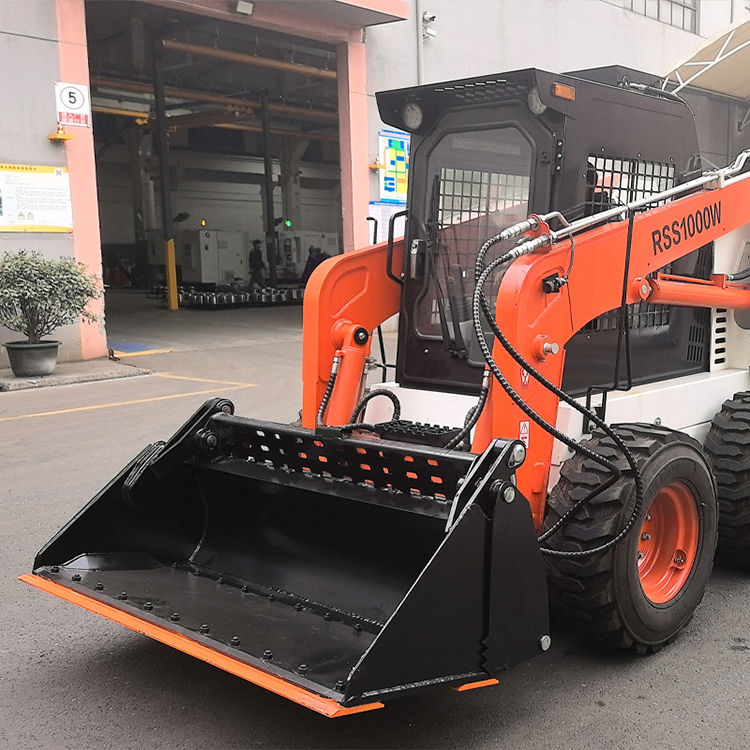

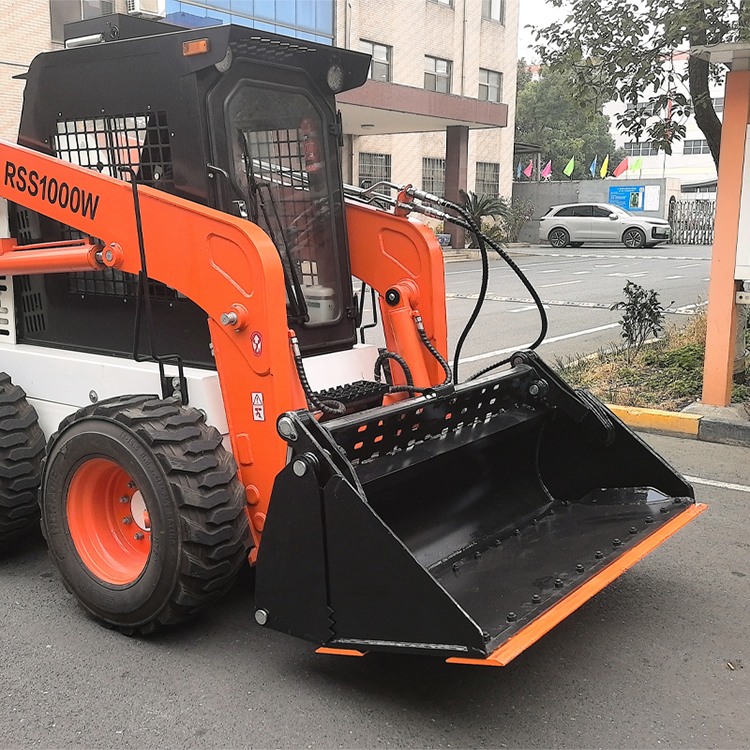

1. Loading and Transporting: Efficiently loads loose materials (such as soil and gravel) when the bucket is closed.

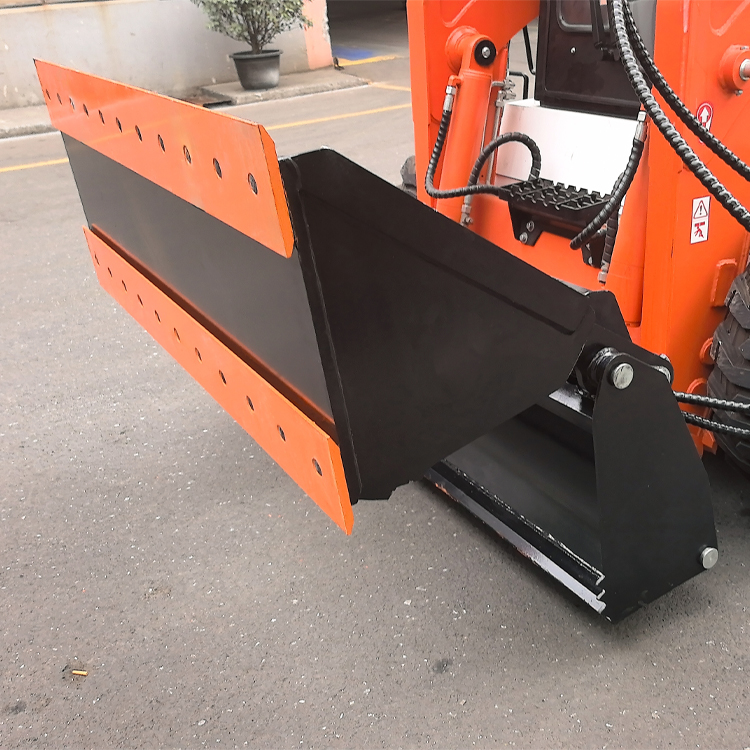

2. Bulldozing and Leveling: When the bucket is fully open, the rear end forms a dozer blade, which can be used to level the ground or push materials; combined with the bottom blade design, it can achieve precise leveling when reversing.
3. Grabbing and Clamping: The bucket opening and closing is hydraulically controlled to clamp irregular objects (such as wood and waste). The maximum clamping force depends on the hydraulic system power, suitable for material sorting and cleaning.
4. Unloading Function: When it is inconvenient to tip the bucket for unloading, unloading can be done by opening the bucket.

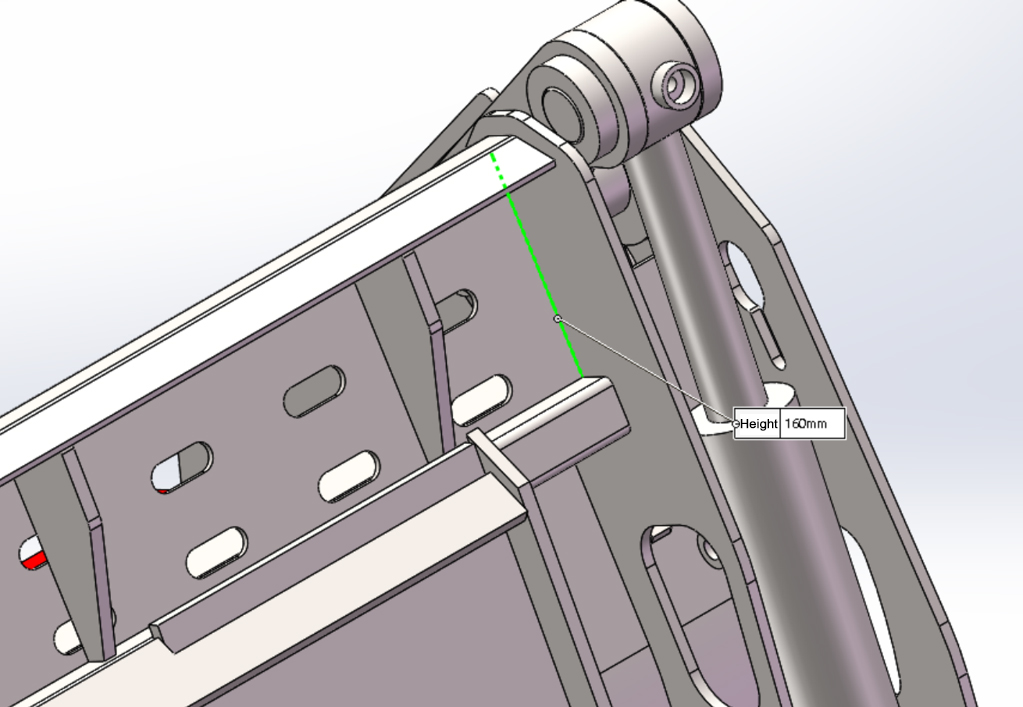

Higher visibility
Four-in-one bucket baffle opening design:
for easy driver observation, height 160mm.

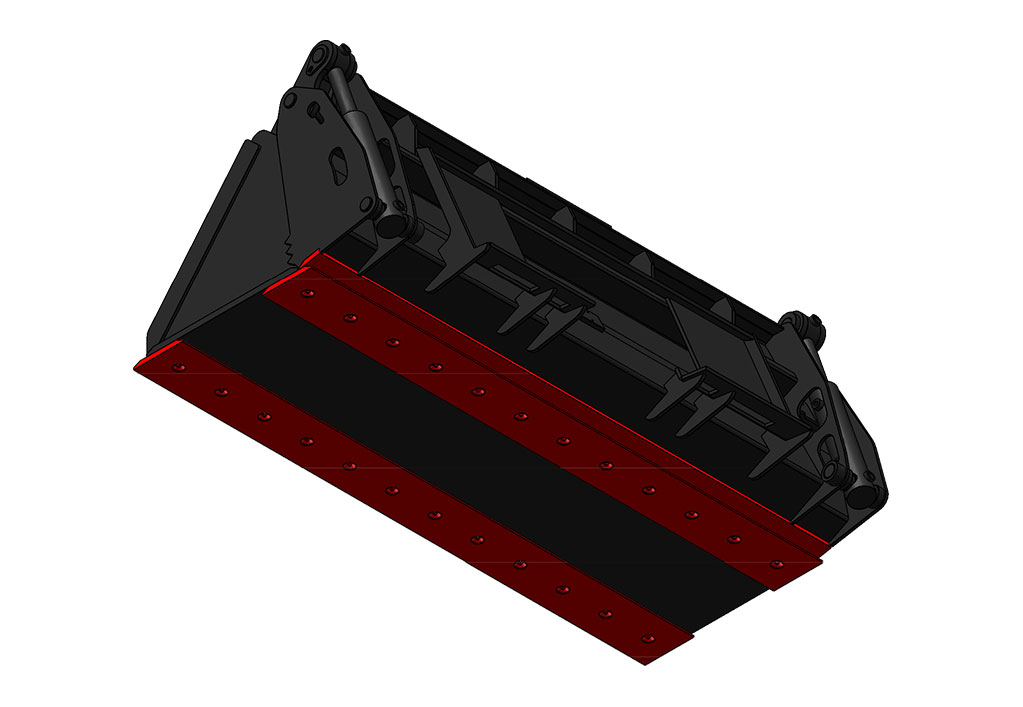

NM400 cutting-edge plates
The blade (red part) is made of NM400 material, making it more durable. The blade features a chamfered design. Front, middle cutting-edge plates are in a changeable.

Tight bite
The four-in-one bucket has a tight fit between the side and the rear blade.
Reinforced support blocks
Strengthening the support blocks enhances structural stability. The bucket body is more durable.
2022 RAY Skid Steer Attachments Catalogue.pdf

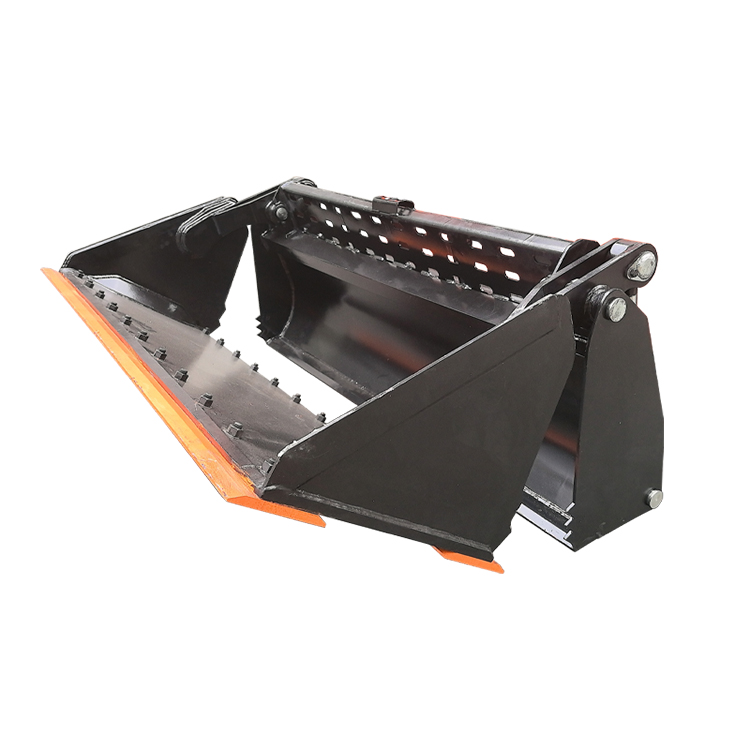

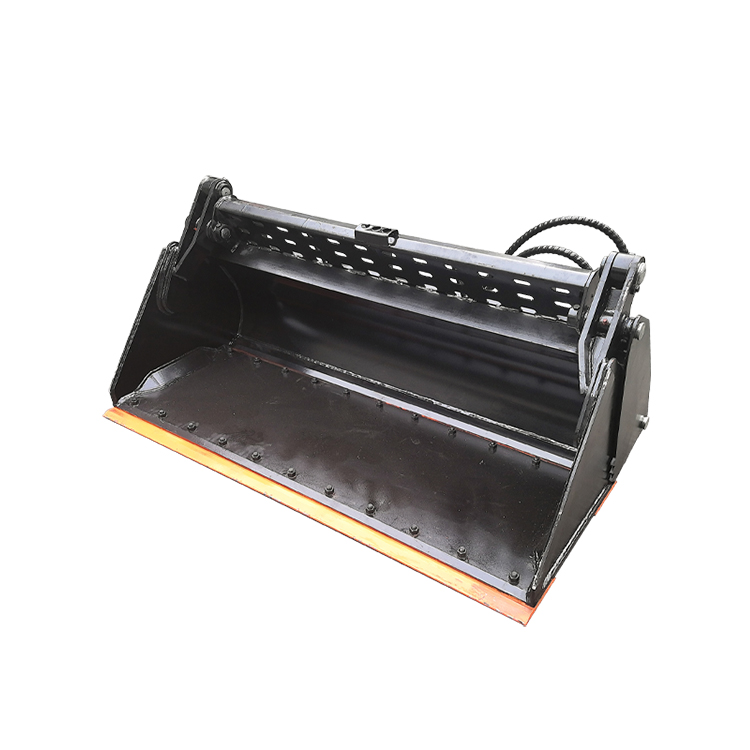

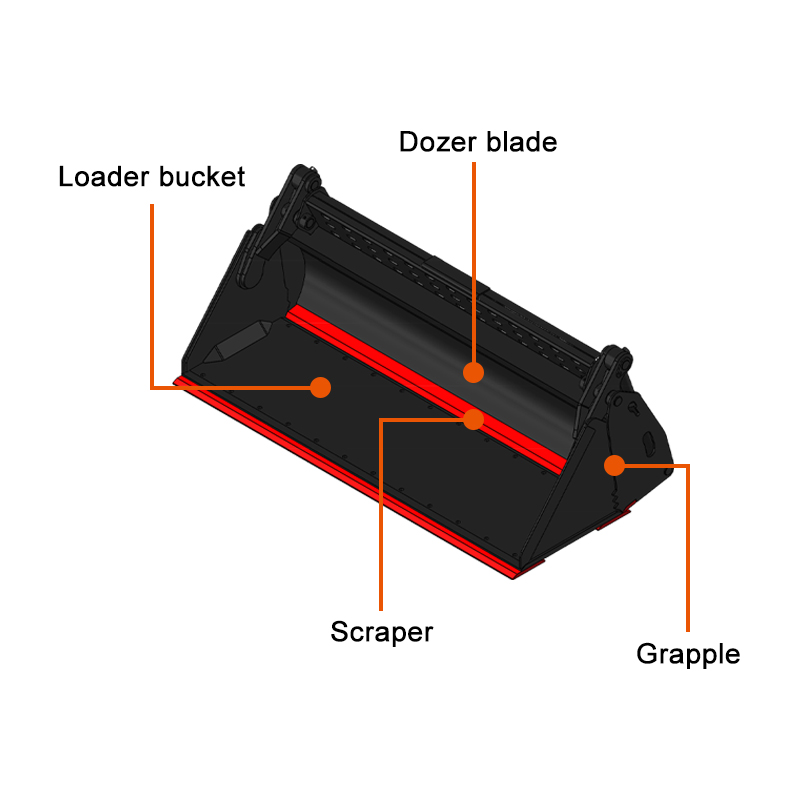

4 functions in one bucket: Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket or back drag with the open bucket like a box blade.
The back of the bucket can serve as a dozer when you open it. It can also used as a grapple because of the clam-style design, picking up materials that couldn't be handled with a standard bucket. Instead of shovelling, the open position can be also used to quickly clean up or "pinch"the last of any dirt piles.
The common size is 60", 66",72", 84".

| Model | Weight | Total Width | Open Distance | Clamping Force | Capacity | Pressure | L*W*H | |||
| Unit | Kg | Lbs | mm | Inches | mm | Inches | N | m³ | Mpa | m |
| 60" | 470 | 1036 | 1524 | 60 | 682 | 26.85 | 19000-25000 | 0.50 | 24 | 1.6*1*0.75 |
| 66" | 502 | 1106 | 1676 | 66 | 682 | 26.85 | 19000-25000 | 0.55 | 24 | 1.7*1*0.75 |
| 72" | 532 | 1172 | 1828 | 72 | 682 | 26.85 | 19000-25000 | 0.60 | 24 | 1.9*1*0.75 |
| 84" | 594 | 1309 | 2134 | 84 | 682 | 26.85 | 19000-25000 | 0.7 | 24 | 2.2*1*0.75 |
1. Loading and Transporting: Efficiently loads loose materials (such as soil and gravel) when the bucket is closed.
2. Bulldozing and Leveling: When the bucket is fully open, the rear end forms a dozer blade, which can be used to level the ground or push materials; combined with the bottom blade design, it can achieve precise leveling when reversing.
3. Grabbing and Clamping: The bucket opening and closing is hydraulically controlled to clamp irregular objects (such as wood and waste). The maximum clamping force depends on the hydraulic system power, suitable for material sorting and cleaning.
4. Unloading Function: When it is inconvenient to tip the bucket for unloading, unloading can be done by opening the bucket.

Higher visibility
Four-in-one bucket baffle opening design:
for easy driver observation, height 160mm.
NM400 cutting-edge plates
The blade (red part) is made of NM400 material, making it more durable. The blade features a chamfered design. Front, middle cutting-edge plates are in a changeable.

Tight bite
The four-in-one bucket has a tight fit between the side and the rear blade.
Reinforced support blocks
Strengthening the support blocks enhances structural stability. The bucket body is more durable.
2022 RAY Skid Steer Attachments Catalogue.pdf
4 functions in one bucket: Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket or back drag with the open bucket like a box blade.
The back of the bucket can serve as a dozer when you open it. It can also used as a grapple because of the clam-style design, picking up materials that couldn't be handled with a standard bucket. Instead of shovelling, the open position can be also used to quickly clean up or "pinch"the last of any dirt piles.
The common size is 60", 66",72", 84".
