84"
542kg 1192lbs
0.52m³
| Quantity: | |
|---|---|
| Model | Weight | Total Width | Open Distance | Clamping Force | Capacity | Pressure | L*W*H | |||
| Unit | Kg | Lbs | mm | Inches | mm | Inches | N | ㎥ | Mpa | m |
| 60'' | 385 | 847 | 1530 | 60 | 718 | 28 | 8230 | 0.4 | 20 | 0.9*1.6*0.8 |
| 72'' | 460 | 1012 | 1830 | 72 | 718 | 28 | 8230 | 0.44 | 20 | 0.9*1.9*0.8 |
| 84'' | 542 | 1192 | 2140 | 84 | 900 | 36 | 8230 | 0.52 | 20 | 1*2.2*0.9 |
2022 RAY Skid Steer Attachments Catalogue.pdf

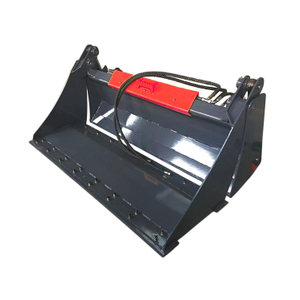

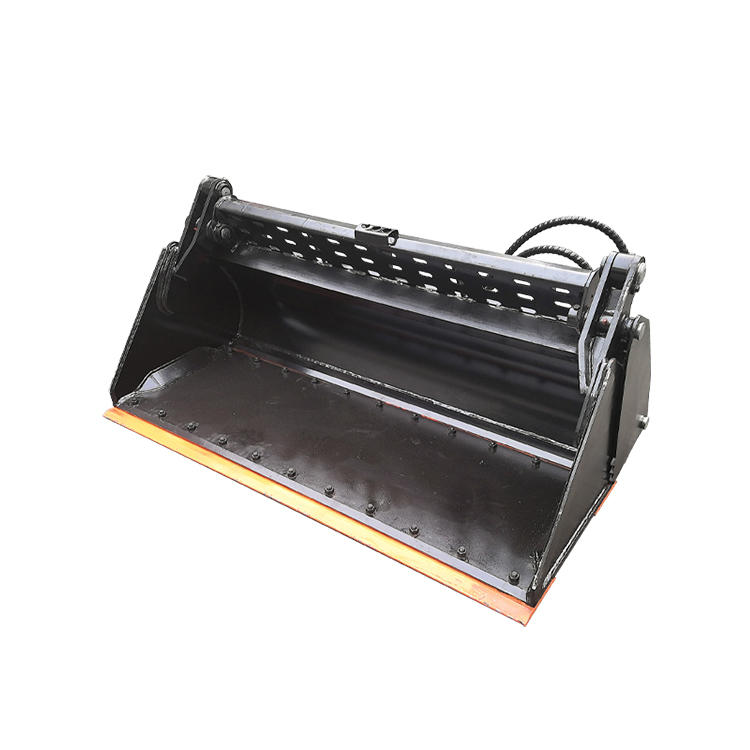

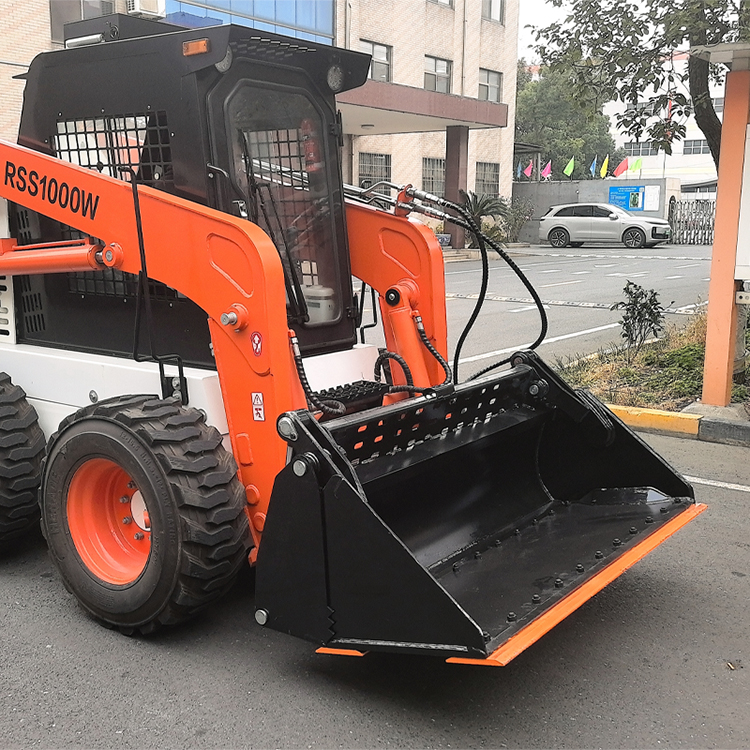

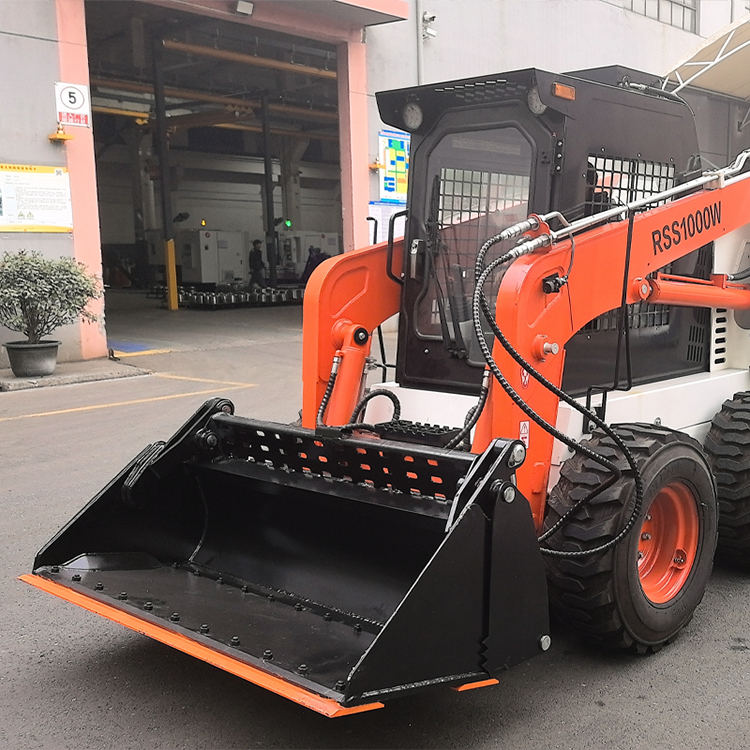

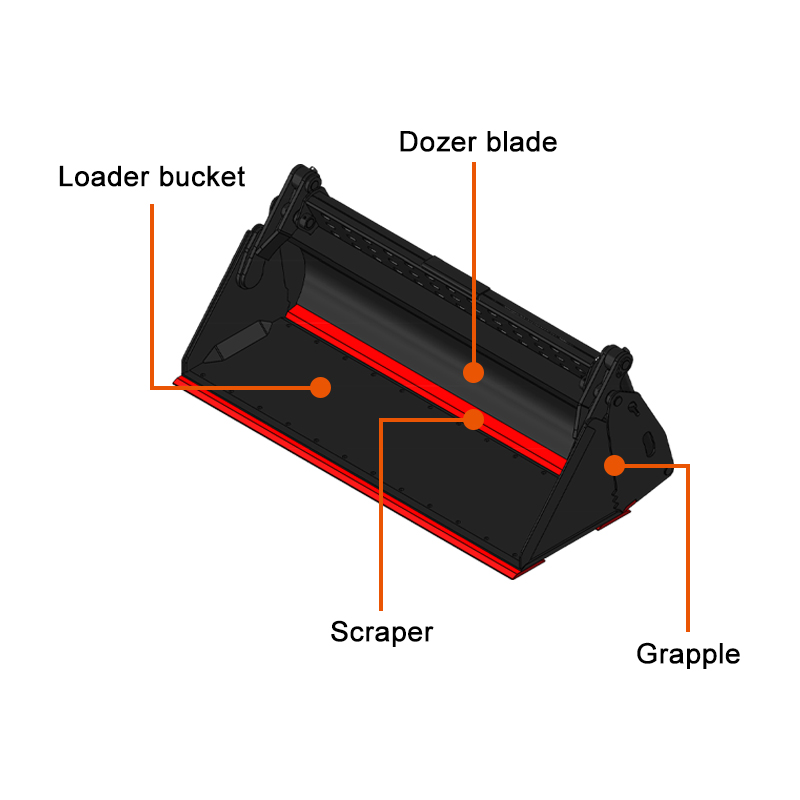

4 functions in one bucket: Use as a grapple for moving logs or debris, push dirt with the blade like a dozer, dig with the bucket or back drag with the open bucket like a box blade.

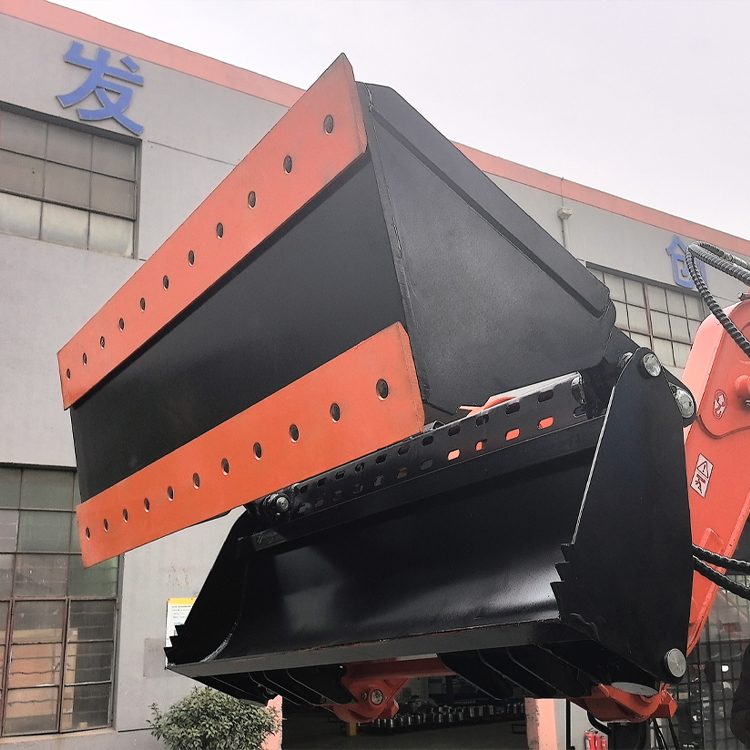

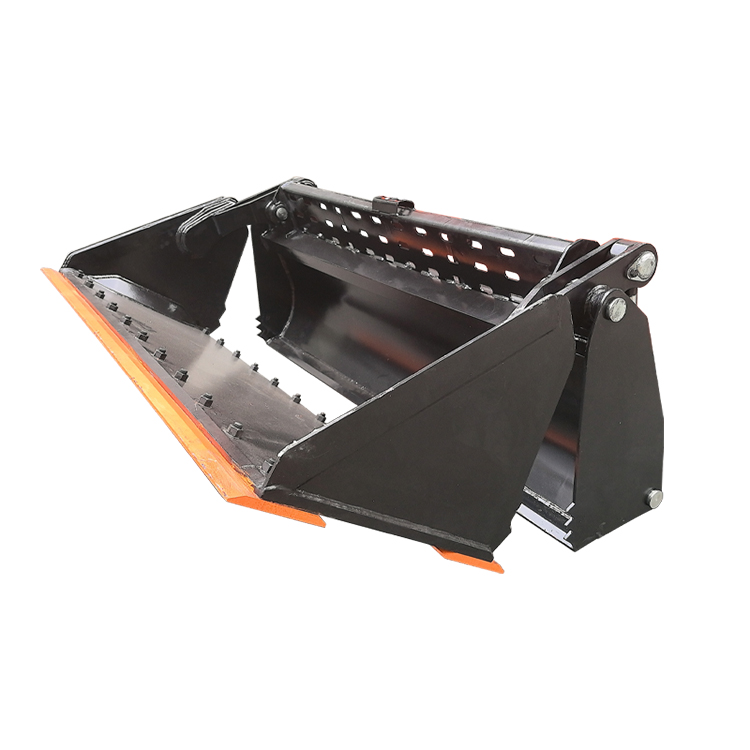

The back of the bucket can serve as a dozer when you open it. It can also used as a grapple because of the clam-style design, picking up materials that couldn't be handled with a standard bucket. Instead of shovelling, the open position can be also used to quickly clean up or "pinch"the last of any dirt piles.
The common size is 60", 72", 84".
