Concrete Mixing Bucket Skid Steer 50"

RAY SKID STEER concrete mixing bucket skid steer 50'' is for mixing and pouring concrete quickly and easily, sold in Europe, United States, Canada and South East Asia.
  • 50"

  • 710kg 1562lbs

  • 1m³


Skid Steer Concrete Mixer Bucket Description

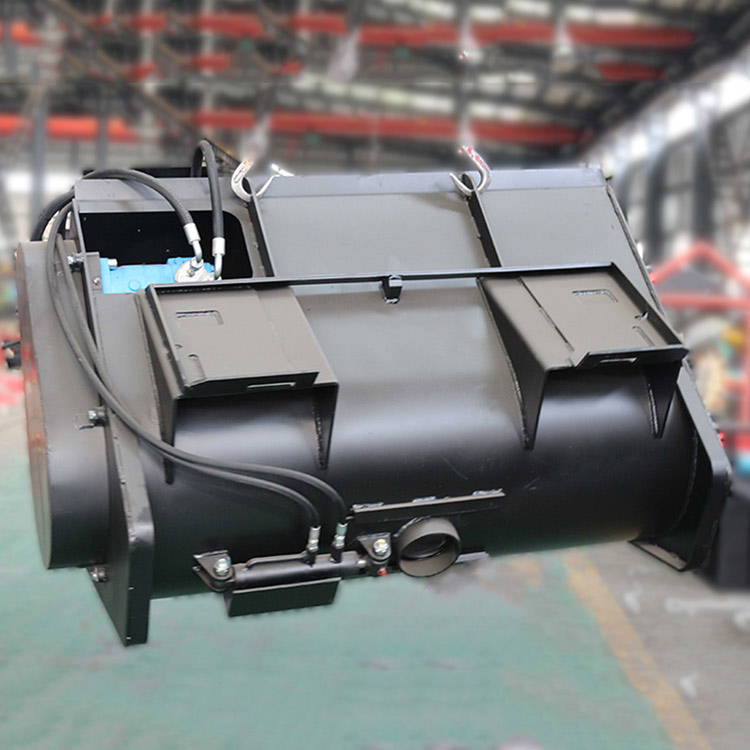

RAY Concrete Mixer is a dynamic and intelligently designed product. It is a heavy-duty skid steer-mounted concrete mixer that allows you to scoop up the material, mix it on the go, and then dispense the material. The center chute not only lets you dispense concrete but also works as a sandbag filler. You can also just pour the finished batch out the front of the mixer in one big pour.

Skid Steer Concrete Mixer Bucket Specification

Model Weight Total Length Pressure Storage Capacity L*W*H
Unit kg Lbs mm Inches MPa m3 m
50" 380 840 1250 50 16-21 0.3 1.3*1.05*1

Skid Steer Concrete Mixer Bucket Features

* Efficient mixing concrete right at the pour site

* 3-in-1 efficient mode: scoop up, mix it on the go and dispense

* Reversible revolving paddles for optimized mixing & pouring

* Chain and sprocket drive hydraulic motor

* Hoses and 1/2” flat-faced couplers included

Skid Steer Concrete Mixer Bucket Video

Skid Steer Concrete Mixer Bucket Catalogue

2022 RAY Skid Steer Attachments Catalogue.pdf

Skid Steer Concrete Mixer Bucket FAQ

1.What is a Mixer Bucket used for?

The mixing bucket is a cost-effective hydraulic appliance for high-quality concrete mixing. The screw-type mixing buckets spiral stirs the concrete to the center, resulting in very fast mixing speeds.

2.Does your mixer bucket can be used on excavator?

Our mixer bucket can be used on skid steer loaders, wheel loaders and excavators.

3.What the capacity of your mixer bucket?

The storage capacity is 0.3 cubic meter.

4.Does your mixer bucket can used on Bobcat?

The coupling of our skid steer attachments can be used on Bobcat skid steer loaders. They are matched for each other.
