84''
1231kg 2708lbs
| Quantity: | |
|---|---|

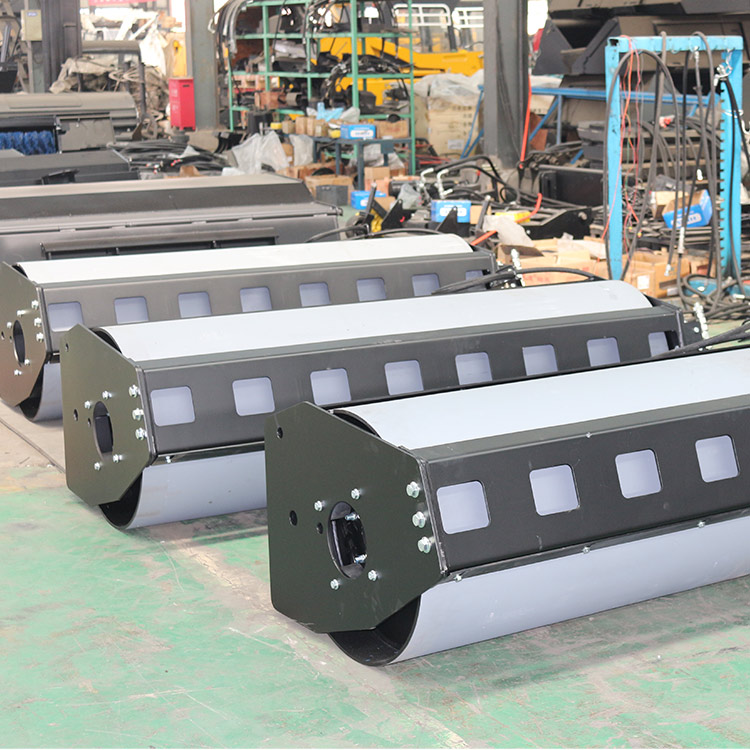

RAY vibratory roller for a skid steer is an attachment designed to compact various surfaces, such as soil, gravel, asphalt, and other construction materials. It utilizes a vibrating drum or plate to apply pressure and vibration to the ground, resulting in improved compaction and stability.
The vibratory roller attachment is typically mounted on a skid steer loader using a universal quick-attach system. It offers the advantage of versatility, allowing skid steer operators to perform compaction tasks in areas where larger rollers may not be suitable or accessible.
These attachments come in different sizes and configurations to accommodate various job requirements. They can be equipped with smooth drums for general compaction or padded drums for delicate surfaces. Some models also offer adjustable vibration settings to match different soil conditions and compaction needs.
The vibratory roller attachment for skid steers is commonly used in road construction, landscaping, utility work, and other projects that require efficient compaction. It can be utilized in applications such as preparing a stable base for pavement, compacting trenches, or leveling and finishing graded surfaces.
Operators can control the vibratory roller attachment using the skid steer's hydraulic system. The attachment is typically operated by engaging the hydraulic flow to activate the vibration mechanism and control the forward and reverse movement of the roller.
Safety features such as operator shields and ergonomic controls are often included to ensure safe operation during compaction tasks.
Overall, the vibratory roller attachment for skid steers offers an efficient and versatile solution for compacting various surfaces, making it a valuable tool in construction and landscaping projects.
| Model | Operating Weight | Drum Width | Drum Diameter | Vibration Force | Vibration Speed | Drum Inclination | L*W*H | |||
| Unit | kg | Lbs | mm | Inches | mm | Inches | Kn | Vpm | degree | m |
| 60'' | 872 | 1918 | 1530 | 60 | 530 | 21 | 31 | 2600 | 15 | 0.9*1.7*0.6 |
| 72'' | 1104 | 2428 | 1830 | 72 | 609 | 24 | 39 | 2600 | 15 | 1*2*0.8 |
| 84'' | 1231 | 2708 | 2140 | 84 | 609 | 24 | 43 | 2600 | 15 | 1*2.3*0.8 |
2022 RAY Skid Steer Attachments Catalogue.pdf
The vibratory roller for a skid steer is equipped with a hydraulically powered exciter system. This system generates the necessary vibration to facilitate effective compaction. By utilizing hydraulic power, the attachment ensures reliable and consistent performance.
One notable advantage is that the vibratory roller operates at lower temperatures. This helps prevent overheating during extended use and ensures optimal performance and longevity of the attachment.
To minimize vibration transmission, the drums of the roller are isolated from the frame. This design feature helps reduce operator fatigue and provides a more comfortable operating experience. It also prevents excessive vibration from being transmitted to the skid steer loader, contributing to improved stability and control.
The vibratory roller attachment is cost-effective and low-maintenance. It is designed to withstand the rigors of compaction work and requires minimal upkeep. This makes it a cost-efficient option for construction and landscaping professionals.
Furthermore, the attachment is fully supported by readily available parts. This ensures that replacement components and spare parts are accessible, making maintenance and repairs convenient. It helps minimize downtime and keeps the vibratory roller operating efficiently.
Overall, the vibratory roller for a skid steer offers a hydraulically powered exciter system, operates at lower temperatures, minimizes vibration transmission, is cost-effective and low-maintenance, and is supported by a comprehensive range of parts. These features combine to provide a reliable, efficient, and user-friendly solution for compacting various surfaces using a skid steer loader.
Traditional rollers use weight to push particles like soil, dirt, etc. During this process, the vibrations help the particles bind together better and compact more tightly by "shaking" the particles together.
| MODEL | WEIGHT | WIDTH |
RVR60 | 872kg/1918lbs | 1530mm 60Inches |
RVR72 | 1104kg/2428lbs | 1830mm 72Inches |
RVR84 | 1231kg/2708lbs | 2140mm 84Inches |
Vibratory Roller | RAY. RAY attachments OEM solutions offer select machine configurations including bare metal chassis, systems, and OEM components to create purpose-built machines and custom equipment to meet project needs.
They are typically used to compact granular base layers, and occasionally asphalt, and can be used in deeper locations. They offer more power and better performance than other rollers, but they also generally cost more.
