Sweeper Attachment for Skid Steer 72"

Sweeper Attachment for Skid Steer 72" can fit to BOBCAT, CASE, JCB, XCMG, KUBOTA brands with different models. we sold it in Europe, Canada, United States.
  • 72''

  • 470kg 1034lbs

  • 1820mm 72inches

  • 660mm 26inches

  • 0.5m³



Sweeper Attachment for Skid Steer Description

RAY sweeper attachment for a skid steer is a versatile tool that can be mounted on the front of a skid steer loader to efficiently sweep and collect debris from a wide range of surfaces. This attachment is designed to enhance the cleaning capabilities of the skid steer, making it an ideal choice for various applications, including construction sites, parking lots, sidewalks, warehouses, and more.

The sweeper attachment typically consists of rotating brushes or brooms that are powered by the skid steer's hydraulic system. These brushes rotate at high speeds, effectively sweeping up dirt, dust, leaves, gravel, and other debris from the ground. The attachment may feature adjustable brush height, angle, and speed, allowing operators to customize the sweeping parameters to match the specific cleaning requirements and surface conditions.

The debris collected by the sweeper attachment is gathered into a hopper or bucket located at the front of the attachment. Some models include hydraulic dumping capabilities, enabling convenient and efficient emptying of the collected debris into a truck or container for disposal.

Sweeper attachments are designed to be compatible with various surfaces, including concrete, asphalt, pavement, and even lawns. They are often equipped with durable brushes, such as polypropylene bristles or wire bristles, which can effectively capture debris without causing damage to the surface.

Installing and removing the sweeper attachment is typically straightforward, with a quick attachment mechanism allowing for easy transitions between different skid steer attachments. This enables operators to maximize the efficiency and versatility of their skid steer loaders by swiftly adapting to different cleaning tasks.

Overall, a sweeper attachment for a skid steer is a reliable and efficient solution for maintaining cleanliness and tidiness in outdoor spaces. Its powerful sweeping capabilities, adjustable features, and ease of use make it a valuable tool for a variety of industries and applications.

Sweeper Attachment for Skid Steer Specifiaction

Model Weight Operating Width Brush Diameter Storage Capacity Operation Pressure   Oil Flow       L*W*H
Unit Kg Lbs mm Inches mm Inches   Mpa l/min Gpm m
60'' 420 924 1520 60 660 26 0.4 16 50-90 13-24 1.4*1.7*0.7
72'' 470 1034 1820 72 660 26 0.5 16 50-90 13-24 1.4*2*0.7
84'' 560 1232 2130 84 660 26 0.6 16 50-90 13-24 1.4*2.3*0.7

Sweeper Attachment for Skid Steer Catalogue

2022 RAY Skid Steer Attachments Catalogue.pdf

Sweeper Attachment for Skid Steer Video

Sweeper Attachment for Skid Steer Features

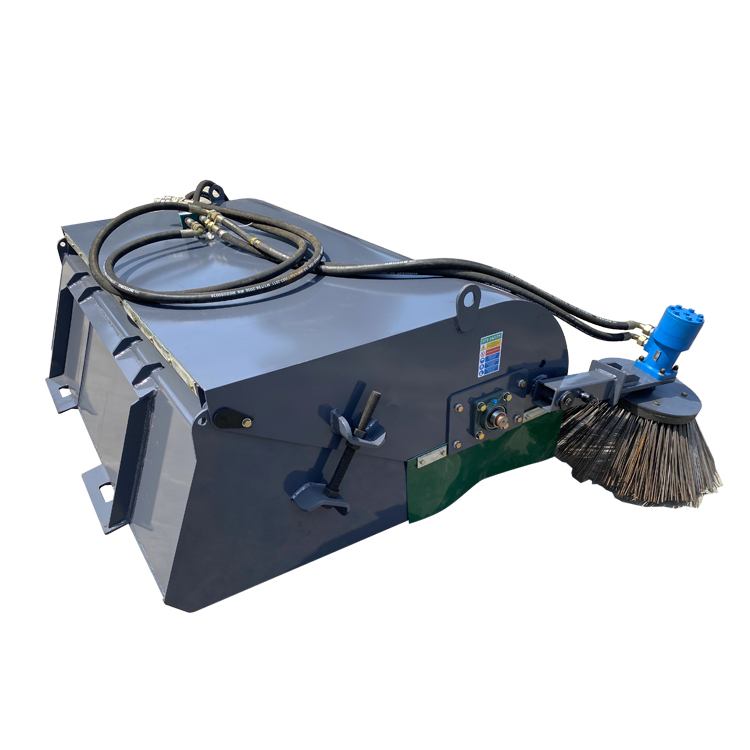

Sweeper Attachment for Skid Steer

The structure is small, compact, lightweight, and easy to operate.


Equipped with a gray canvas around the sweeper, durable, with strong flexibility and industry.

Wire Brush for Skid Steer Sweeper Attachment

Using the polyethylene hollow-diamond wire brush, wear strength greatly improved, and life expectancy increased by 1.5 times.


With the pedal and tubing support design.


EATON motor is optional. The motor installed by a quick change system, changes the brush conveniently, greatly improving work efficiency. The motor end is designed with an anti-winding device, to prevent the wire from winding the motor to reduce the service life of the motor.

The sweeper attachment for a skid steer offers several benefits, including:

1. Increased productivity

The attachment enhances the skid steer's cleaning capabilities, allowing for faster and more efficient debris removal. This results in improved productivity and time savings for various cleaning tasks.

2. Reduced downtime

With the sweeper attachment, downtime is minimized as it enables quick and convenient sweeping operations. There is no need for manual sweeping or the use of additional equipment, ensuring uninterrupted workflow.

3. Easy adjustment without tools

The attachment is designed for user-friendly operation. Adjustments, such as brush height, angle, and speed, can be easily made without the need for additional tools. This simplifies the setup process and allows for swift adaptation to different cleaning requirements.

4. Higher resale value

Investing in a sweeper attachment can increase the overall resale value of the skid steer loader. This is because the attachment expands the versatility and functionality of the machine, making it more appealing to potential buyers in the future.

In summary, the sweeper attachment offers advantages such as improved productivity, reduced downtime, effortless adjustment capabilities, and enhanced resale value, making it a valuable addition to any skid steer loader.

RAY skid steer broom-1
RAY skid steer broom-3
RAY skid steer broom-2

RAY skid steer broom-4
RAY skid steer broom-5

Sweeper Attachment for Skid Steer FAQ

1. What's the Best Skid Steer Pick-up Broom

Brooms are essential to many cleanup operations across multiple industries. However, with different types and bristles to choose from, choosing the right broom for future jobs can be a challenge. Use this guide to help you find the best broom for your needs and get the best value after your purchase.

2. What is a sweeper attachment for a skid steer?

A sweeper attachment for a skid steer is a tool that can be mounted on the front of the skid steer loader to sweep and collect debris from various surfaces.

3. How do you use a broom to pick up a skid steer?

You sweep forward in the opposite direction of the rotary movement. And that's how it picks up the material. It is caught by the rubber mat at the front. And it goes over it and into the bucket.

4. How does a sweeper attachment for a skid steer work?

The sweeper attachment consists of rotating brushes or brooms that are powered by the skid steer's hydraulic system. These brushes rotate and sweep debris into a collection hopper or bucket.

5. What surfaces can a sweeper attachment clean?

Sweeper attachments for skid steers are versatile and can be used on surfaces such as concrete, asphalt, pavement, gravel, and even lawns.

6. What are the advantages of using a sweeper attachment?

Using a sweeper attachment for a skid steer can save time and labor by efficiently sweeping and collecting debris. It is ideal for cleaning parking lots, sidewalks, construction sites, warehouses, and other large areas.

7. Can the sweeper attachment be adjusted for different cleaning requirements?

Yes, sweeper attachments often have adjustable features, such as brush height, angle, and speed, allowing you to adapt to different surfaces and debris types.

8. How is the debris collected and disposed of?

The debris swept up by the attachment is typically collected in a hopper or bucket. Some attachments have hydraulic dumping capabilities, making it easy to empty the debris into a truck or container.

9. Are there different types of brushes available for the sweeper attachment?

Yes, sweeper attachments can come with different types of brushes, such as polypropylene bristles or wire bristles, to accommodate various cleaning needs and surface types.

10. Can a sweeper attachment be used in all weather conditions?

Sweeper attachments are generally designed to be used in various weather conditions, including dry, wet, or even light snow. However, extreme weather conditions may affect their performance.

11. Is the attachment easy to install and remove?

Skid steer sweeper attachments are typically designed for easy installation and removal, allowing for quick transitions between different attachments as needed.

12. Can a sweeper attachment be used on uneven surfaces?

Sweeper attachments are designed to be versatile and can handle some uneven surfaces. However, the efficiency may vary depending on the severity of the unevenness.
